5 Layer Water Tanks UAE
The premium water tank for UAE's extreme climate - five-layer rotational moulded construction with dual insulation keeps stored water significantly cooler, cleaner, and better protected than any standard tank.
Khazzan supplies premium 5 Layer Water Tanks - the highest specification polyethylene water tank available in the UAE. Manufactured using advanced rotational moulding technology with 100% Virgin Food Grade Polyethylene, the five-layer construction delivers superior UV protection, dual thermal insulation, an anti-algae black barrier, and a food-grade inner liner certified for potable water. In UAE summer conditions, a 5-layer tank keeps stored water 8–15°C cooler than a standard 3-layer tank in the same location - significantly reducing bacterial growth, improving water quality, and extending the intervals between tank cleaning. For rooftop tanks in direct UAE sunlight, premium villas, hotels, hospitals, schools, and any application where water quality and temperature are paramount, the 5-layer tank is the recommended specification. All tanks supplied by Khazzan are UAE Municipality Certified and carry a 5-year manufacturer's warranty.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturing Process | Rotational Moulding |

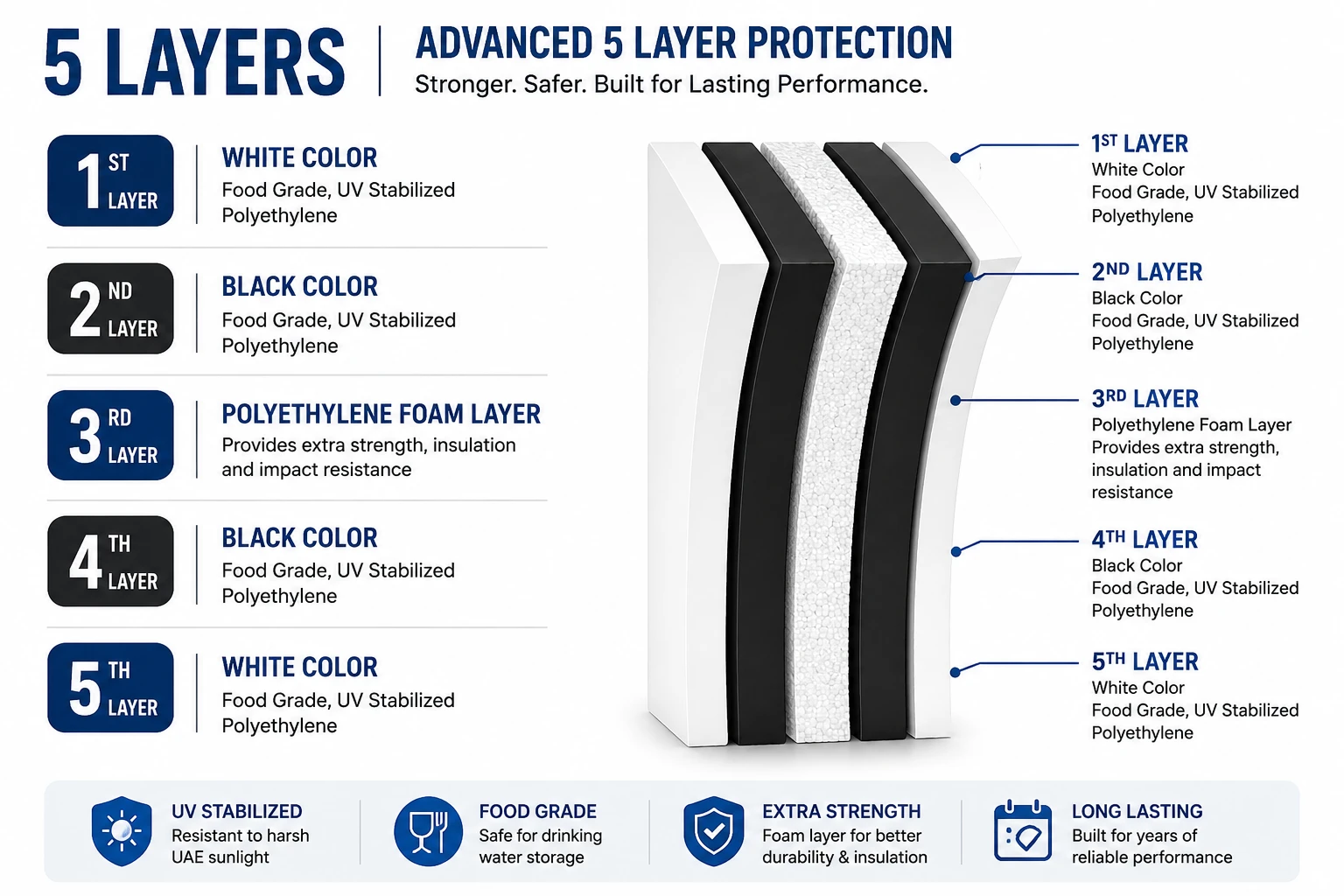

| Layer 1 - Outer White | UV Stabilized Polyethylene - reflects sunlight, premium clean finish, prevents weather degradation |
| Layer 2 - Black UV Barrier | Blocks sunlight penetration, prevents algae formation, stops heat absorption |
| Layer 3 - Foam Insulation Core | Polyethylene Foam - primary thermal insulation, reduces heat transfer, adds structural rigidity |
| Layer 4 - Second Insulation | Additional thermal barrier - dual insulation for maximum temperature control in UAE climate |
| Layer 5 - Inner White | FDA Food Grade Polyethylene - anti-bacterial, anti-fungal, odour-free, safe for drinking water |
| Sizes Available | 100L · 250L · 500L · 1,000L · 2,000L · 3,000L · 5,000L · 10,000L · Custom |
| Temperature Advantage | Keeps water 8–15°C cooler than 3-layer tanks in UAE summer |
| Temperature Range | -20°C to +60°C ambient |
| Application | Potable Water Storage - Rooftop · Residential · Commercial · Hospitality |
| Certifications | UAE Municipality Certified for potable water |
| Warranty | 5 years from date of purchase |
Key Benefits
Who Uses This Tank?
Rooftop Tanks in Direct UAE Sunlight
The definitive specification for rooftop tanks that face direct UAE afternoon sun all day. Dual insulation layers keep water significantly cooler, reducing bacteria risk and improving water quality vs any standard tank.
Hotels, Hospitals & Premium Villas
Hospitality operators, healthcare facilities, and premium residences choose 5-layer tanks where water quality, hygiene standards, and temperature control are non-negotiable requirements.
Schools, Mosques & Community Buildings
Where large numbers of people depend on stored water quality. The anti-bacterial inner layer and superior temperature control make 5-layer tanks the responsible specification for high-occupancy buildings in the UAE.
Why Buy From Khazzan.ae?
All tanks meet UAE potable water storage requirements
We stock tanks from UAE's top certified manufacturers
Same-week delivery across all 7 emirates
Frequently Asked Questions
What is a 5 layer water tank?
A 5-layer water tank is the premium specification polyethylene water tank, manufactured using rotational moulding with five distinct layers of 100% Virgin Polyethylene. Layer 1 (outer white) is UV-stabilised for sunlight reflection. Layer 2 (black) is a UV barrier that blocks sunlight and prevents algae. Layer 3 is a polyethylene foam insulation core. Layer 4 is a second insulation barrier for dual thermal protection. Layer 5 (inner white) is food-grade polyethylene safe for drinking water. The result is a tank that keeps water significantly cooler and cleaner than any standard tank in UAE conditions.
How much cooler does a 5 layer tank keep water?
In UAE summer conditions, a 5-layer insulated tank typically keeps stored water 8–15°C cooler than an equivalent 3-layer tank in the same location. The actual difference depends on tank size, colour, sun exposure, time of day, and ambient temperature. For a rooftop tank in direct afternoon sun, the difference is most significant - often the gap between acceptable and dangerously warm water.
Is a 5 layer water tank better than a 3 layer tank?
For above-ground installations in direct UAE sunlight, yes - a 5-layer tank is significantly better. The dual insulation layers keep stored water 8–15°C cooler, which reduces bacterial growth risk and maintains better water quality. The black UV barrier also prevents algae formation more effectively than a standard 3-layer outer shell. For tanks in shaded, indoor, or underground locations where temperature rise is minimal, a 3-layer tank is perfectly adequate and more cost-effective.
Is a 5 layer water tank better than a 4 layer tank?
A 5-layer tank has a second full insulation layer that a 4-layer tank does not. This gives better temperature control - particularly valuable for direct open-rooftop installations under full UAE summer sun. For semi-shaded rooftops or standard residential use, a 4-layer tank provides excellent performance at a lower price. For the highest temperature performance and best water quality in the most demanding UAE conditions, choose 5-layer.
What is the difference between 3, 4, and 5 layer water tanks?
3-layer: UV-stabilised outer, structural core, food-grade inner. Basic UV protection, no foam insulation. Best value for shaded and indoor installations. 4-layer: Adds a black UV barrier and one foam insulation layer. Better temperature control and stronger anti-algae protection. Ideal for semi-shaded rooftops and residential use. 5-layer: Adds a second insulation layer on top of the 4-layer construction. Maximum thermal protection, keeping water 8–15°C cooler than 3-layer tanks. The premium specification for direct-sun rooftop, hotel, hospital, and premium residential use.
Is a 5 layer water tank safe for drinking water?
Yes. The inner layer (Layer 5) is 100% Virgin Food Grade polyethylene, anti-bacterial, anti-fungal, and odour-free. All Khazzan 5-layer tanks are UAE Municipality Certified for potable (drinking) water storage.
Does a 5 layer tank prevent algae growth?
Yes. The black UV barrier layer (Layer 2) blocks all sunlight from reaching the stored water. Without light, algae cannot grow. This makes 5-layer tanks one of the most effective at preventing algae formation, even in the most sun-exposed rooftop positions in the UAE.
Why does water temperature matter in a UAE water tank?
In UAE summers, ambient rooftop temperatures can exceed 55°C. Without proper insulation, water stored in rooftop tanks can reach 40–50°C - warm enough to accelerate bacterial growth, including Legionella and other pathogens. Cooler stored water (which 5-layer tanks maintain) significantly reduces this risk, improves taste, and meets best-practice water hygiene standards. This is the primary reason 5-layer tanks are recommended for direct-sun rooftop installations.
Can bacteria grow inside a 5 layer water tank?
The 5-layer tank design actively reduces bacterial growth through two mechanisms. First, the dual insulation keeps water cooler, reducing the temperature range where bacteria multiply most rapidly. Second, the food-grade anti-bacterial inner liner (Layer 5) inhibits bacterial and fungal growth on the tank surface. Regular cleaning every 6–12 months is still recommended as best practice for all water tanks.
What is the purpose of the black layer in a 5 layer tank?
The black layer (Layer 2) is a UV barrier that serves two functions. It blocks sunlight from penetrating into the tank interior, which prevents algae growth (algae requires light). It also reduces the amount of solar radiation that reaches the insulation core, improving the tank's overall thermal performance.
What is the foam layer in a 5 layer tank?
The foam layer (Layer 3) is a closed-cell polyethylene foam that acts as the primary thermal insulator. It significantly reduces heat transfer from the hot outer shell to the stored water inside. In a 5-layer tank, this is complemented by a second insulation layer (Layer 4) for maximum temperature control. The foam also adds structural rigidity to the tank body.
How long does a 5 layer water tank last in UAE?
With proper installation and regular cleaning, a quality 5-layer rotational moulded polyethylene tank has a long service life under UAE conditions. The superior UV stabilisation on the outer layer typically provides better long-term resistance to UAE's intense sunlight compared to standard 3-layer tanks. All Khazzan tanks carry a 5-year manufacturer's warranty.
Does a 5 layer tank rust or corrode?
No. Polyethylene tanks are completely rust-free and corrosion-free. There are no metal components in contact with stored water. This is a key advantage over older concrete or steel tank options.
Can a 5 layer water tank crack?
The rotational moulding process produces a seamless, one-piece structure. The foam insulation core adds extra rigidity and impact resistance compared to standard tanks. Under normal installation and use, cracking is not a concern. Avoid dropping the tank or installing it on an uneven surface that could create stress points.
What sizes are available for 5 layer water tanks?
5-layer water tanks are available in 100L, 250L, 500L, 1,000L, 2,000L, 3,000L, 5,000L, and 10,000L. Custom sizes are available for large commercial and industrial projects. Contact Khazzan for bulk supply requirements.
Can 5 layer tanks be installed on rooftops?
Yes - rooftop installation in direct UAE sunlight is the primary use case where 5-layer tanks outperform all alternatives. Ensure the supporting structure is rated for the full weight of the filled tank. Khazzan can advise on weight specifications per size.
How do I clean a 5 layer water tank?
Empty the tank fully. Scrub the interior with a long-handled brush and a food-safe disinfectant solution. Rinse thoroughly until no cleaning agent remains. The smooth food-grade inner surface of a 5-layer tank is easy to clean and resists residue buildup. Due to the cooler water temperature maintained by the insulation, cleaning intervals are typically longer than for standard 3-layer tanks - 6–12 months is standard practice.
Is a 5 layer tank suitable for a hotel or hospital?
Yes - hotels, hospitals, and healthcare facilities in UAE are among the most common users of 5-layer tanks. These buildings have strict water hygiene obligations. The combination of cooler water storage, anti-bacterial inner liner, and anti-algae UV barrier makes 5-layer tanks the recommended specification for high-occupancy buildings where water quality standards must be maintained.
What is the price difference between 3 layer and 5 layer tanks?
5-layer tanks are typically 25–40% more expensive than equivalent 3-layer tanks, reflecting the additional materials and more complex manufacturing. For rooftop and direct-sun applications in UAE, the premium is justified by the improvement in water quality, reduction in bacterial risk, and longer cleaning intervals. Contact Khazzan for current pricing on your required size.
Which water tank is best for a villa in UAE?
For villas with rooftop tanks in direct UAE sunlight, a 5-layer insulated tank in the 1,000L to 5,000L range is the premium recommendation. For villas with covered plant rooms or shaded tank positions, a 3-layer or 4-layer tank is cost-effective and performs well. Khazzan can advise the right specification for your villa - WhatsApp us for a free recommendation.
Does UV radiation damage a 5 layer tank?
No. The outer layer of a 5-layer tank contains UV stabilisers specifically designed to resist UAE's intense solar radiation. The UV-stabilised white outer layer reflects sunlight rather than absorbing it, reducing both UV degradation of the tank and heat gain into the stored water.
Is a white outer layer better than a black outer layer for UAE?
A white outer layer reflects more sunlight and absorbs less heat, which benefits water temperature performance - particularly important for 5-layer tanks where thermal performance is the key selling point. Black outer layers provide strong UV blocking but absorb more solar heat. In a 5-layer tank, the insulation core manages the heat even with a black outer shell, but a white outer layer further optimises thermal performance.
Is maintenance required for a 5 layer tank?
Very little. Regular cleaning every 6–12 months and annual inspection of fittings and connections is all that is typically needed. The superior insulation of a 5-layer tank generally means less biofilm buildup than in warmer standard tanks, potentially extending cleaning intervals.
Are 5 layer tanks worth the extra cost in UAE?
For rooftop tanks in direct UAE sunlight - yes, consistently. The water quality benefits, reduced bacterial risk, and longer cleaning intervals provide real operational value. For shaded or indoor tanks, a 3-layer or 4-layer tank at lower cost is equally suitable. The decision comes down to installation location and how important water temperature and quality are to the user.
Can I store chemicals in a 5 layer tank?
Standard 5-layer tanks are certified for potable water storage only. For chemical storage, specialist chemical-grade tanks are required. Contact Khazzan to discuss specific storage requirements.
What is the temperature range of a 5 layer polyethylene tank?
5-layer polyethylene tanks are rated for -20°C to +60°C ambient temperature. In UAE conditions, the insulation layers actively work to keep stored water temperature well below the ambient rooftop temperature.
Are 5 layer water tanks environmentally friendly?
Yes. Polyethylene tanks are fully recyclable at end of life. The long service life and durability of 5-layer tanks reduce replacement frequency. Better water temperature management also reduces the energy required to cool water in buildings that use chilled water systems, contributing to lower energy consumption.
How do I choose between a 4 layer and 5 layer tank?
Choose 4-layer if: your tank is in a semi-shaded position, you want better than basic insulation at a moderate price increase, or the tank is in a covered plant room with some sun exposure. Choose 5-layer if: the tank is on an open rooftop in direct UAE afternoon sun, water quality and temperature are critical (hotel, hospital, premium villa), or you want the best available specification with maximum protection.
Do Khazzan 5 layer tanks come with a warranty?
Yes. All 5-layer water tanks supplied by Khazzan.ae carry a 5-year manufacturer's warranty against defects in materials and workmanship.
Are 5 layer tanks available for same-day delivery in UAE?
Common sizes are in stock for same-week delivery across Dubai, Abu Dhabi, Sharjah, and all UAE emirates. Contact Khazzan via WhatsApp or phone to confirm availability and delivery timelines for your required size.
What fitting connections do 5 layer tanks include?
Standard 5-layer tanks include inlet, outlet, and overflow fitting connections. Fitting sizes vary by tank capacity. Khazzan can advise on compatible fittings, ball valves, level indicators, and accessories for your installation.
