Choosing the wrong water tank size is one of the most common and costly mistakes people make when setting up water storage in UAE. Too small, and you're constantly running dry — especially during peak demand in summer when DEWA or ADDC supply can occasionally dip during maintenance. Too large for your actual usage, and you're paying for capacity you'll never use while the stored water sits stagnant.
Getting the size right isn't complicated, but it does require a few minutes of honest calculation. This guide walks you through exactly how to size a water tank for any property in the UAE — from a studio apartment to a 500-person labour camp.
How Water Tank Sizes Are Measured in UAE
This is the first thing that confuses most people: water tanks in UAE are sized in US Gallons (USG), not litres. If you're used to thinking in litres, just remember:
1 US Gallon = 3.785 Litres
So a 1,000 USG tank holds approximately 3,785 litres — just under 4 cubic metres of water.
Why US Gallons? Historical supply chain reasons — most of the GRP and plastic tank manufacturing that entered UAE during the construction boom used American sizing conventions, and it stuck.
Plastic Water Tank Sizes in UAE
Plastic (polyethylene) tanks are the most common choice for residential and small commercial applications. Standard sizes available across UAE:
| Capacity (USG) | Capacity (Liters) | Typical Use |
|---|---|---|
| 50 USG | 189 L | Small flat, bathroom storage |

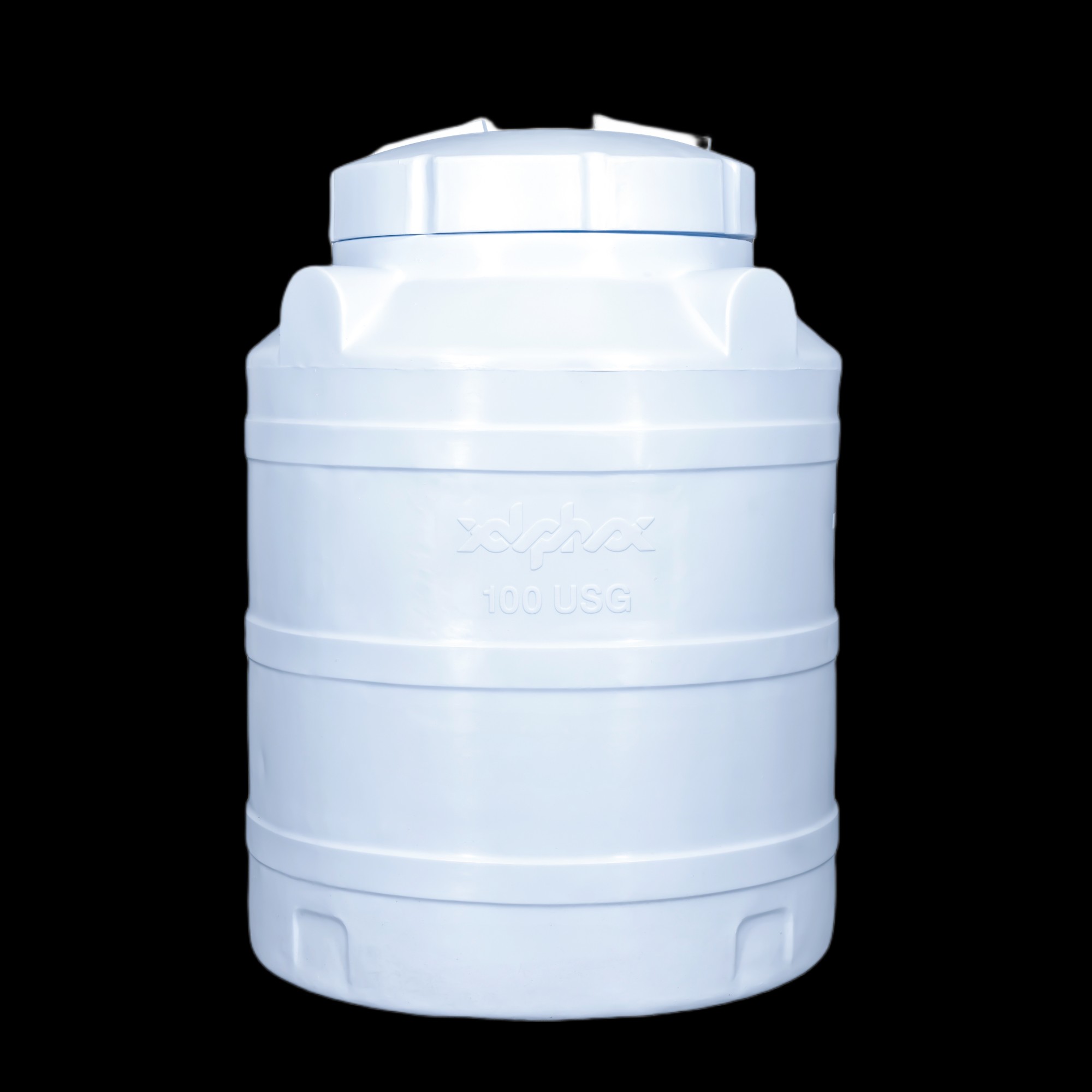

| 100 USG | 379 L | Studio / small apartment |
| 200 USG | 757 L | 1-bedroom apartment |
| 300 USG | 1,135 L | 2-bedroom apartment |
| 500 USG | 1,893 L | 3-bedroom villa |
| 750 USG | 2,839 L | 4-bedroom villa |
| 1,000 USG | 3,785 L | Large villa / small office |
| 1,500 USG | 5,678 L | Large villa / small commercial |
| 2,000 USG | 7,570 L | Commercial building |
| 3,000 USG | 11,356 L | Large commercial / small hotel |
| 6,000 USG | 22,712 L | Hotel / large commercial |
The upper limit for standard plastic tanks is around 6,000 USG. Above this, GRP fiberglass becomes the only practical single-tank option.
GRP Fiberglass Tank Sizes in UAE
GRP tanks cover a much wider size range — from 300 USG up to 20,000 USG in standard catalogue sizes, and custom sizes beyond that:
| Capacity (USG) | Capacity (Liters) | Typical Application |
|---|---|---|
| 300 USG | 1,135 L | Small commercial / villa |
| 500 USG | 1,893 L | Villa / small hotel |
| 1,000 USG | 3,785 L | Medium commercial |
| 2,000 USG | 7,570 L | Hotel wing / clinic |
| 3,000 USG | 11,356 L | Small hotel / school |
| 5,000 USG | 18,927 L | Medium hotel / hospital wing |
| 7,500 USG | 28,390 L | Large hotel / labour camp |
| 10,000 USG | 37,854 L | Hospital / large facility |
| 15,000 USG | 56,781 L | Major commercial complex |
| 20,000 USG | 75,708 L | Industrial / government project |
How to Calculate the Right Water Tank Size for Your Property
Step 1: Estimate Your Daily Water Consumption
In UAE, the general consumption figures accepted for tank sizing are:
| Person / Space | Water Use Per Day |
|---|---|
| Residential person | 150 – 200 litres |
| Office worker | 50 – 60 litres |
| Hotel guest | 200 – 250 litres |
| Restaurant diner (per cover) | 50 – 100 litres |
| Hospital patient | 250 – 400 litres |
| Labour camp resident | 120 – 150 litres |
Step 2: Choose a Retention Period
Retention period means how many days' worth of supply you want the tank to hold. A one-day tank covers short supply interruptions. A two-day tank is the sensible minimum for most applications in UAE. Three days gives you real peace of mind.
For commercial and critical applications (hospitals, hotels, data centres), two to three days is standard.
Step 3: Calculate
Formula: Tank Capacity (Litres) = Daily Consumption per Person × Number of People × Retention Days
Residential example: 4-bedroom villa with 6 people, 2-day retention
- 175 L × 6 × 2 = 2,100 litres
- Nearest standard size: 750 USG (2,839 L)
- Recommended: 1,000 USG (3,785 L) to allow for guests and hot weather peaks
Commercial example: 80-room hotel, average 1.5 guests per room, 2-day retention
- 120 guests × 225 L × 2 days = 54,000 litres
- Nearest GRP size: 15,000 USG (56,781 L)
Always round up, not down. A tank that's 20% larger than calculated is an asset. A tank that's 20% smaller is a headache.
Horizontal vs. Vertical Tank Sizing
For the same nominal capacity, vertical and horizontal tanks have different physical dimensions.
Vertical tanks have a smaller floor footprint but greater height. Standard height-to-diameter ratios are typically between 1:1 and 1.5:1. Better for rooftop and corner installations.
Horizontal tanks have a larger footprint but lower height. Used where headroom is limited — low-ceiling plant rooms, under-stair installations, and transport applications.
When specifying a tank, always check the actual physical dimensions against your available installation space — don't just specify the capacity.
Underground Tank Sizing
Underground GRP tanks are sized on the same capacity calculations, but installation imposes additional constraints:
- The tank must fit in the excavated pit with room for bedding and backfill
- Access manholes must be reachable from the surface
- The burial depth must be appropriate for the tank's structural rating
- Groundwater table depth affects buoyancy requirements
Typical underground GRP tank sizes available in UAE run from around 300 USG (1,135 L) up to 3,000 USG (11,356 L) as standard, with larger custom-made tanks available for specific projects.
Septic Tank Sizing
Septic tanks use similar calculations but with a required minimum retention time. UAE standards typically require a minimum two-day retention time for residential septic systems, three days preferred.
For a villa with 6 occupants generating 150 L/person/day:
- 6 × 150 L × 3 days = 2,700 litres
- Nearest size: 750 USG (2,839 L) — but we'd recommend 1,000 USG (3,785 L) minimum
See our dedicated Septic Tank UAE guide for detailed septic tank sizing tables.
Frequently Asked Questions
Q: What size water tank do I need for a villa in Dubai? A: For a typical 3–4 bedroom villa with 4–6 occupants, a 750 USG to 1,000 USG (2,839–3,785 L) tank provides a comfortable two-day buffer. If you have a garden with irrigation, go larger.
Q: Are water tank sizes in UAE the same as in Europe? A: Tank capacities are measured in US Gallons in UAE, not litres or imperial gallons. Always confirm which unit is being used when comparing prices or specifications.
Q: Can I connect two tanks together for larger capacity? A: Yes — tanks can be connected in parallel or series using appropriate pipework. This is a cost-effective solution when a single larger tank is not available or practical to install. Your plumber can design a simple manifold connection.
Q: What is the largest plastic water tank available in UAE? A: The largest standard polyethylene tank is 6,000 USG (approximately 22,700 litres). For larger single-tank capacity, GRP fiberglass is required.
Q: How long does it take to deliver a large tank in UAE? A: Standard sizes are typically available from stock for same-week or next-week delivery within the UAE. Large GRP tanks over 10,000 USG may have a lead time of 2–4 weeks.
Need help sizing a water tank for your property in UAE? The team at Khazzan.ae can advise on the right capacity, type, and specification for your specific application.
