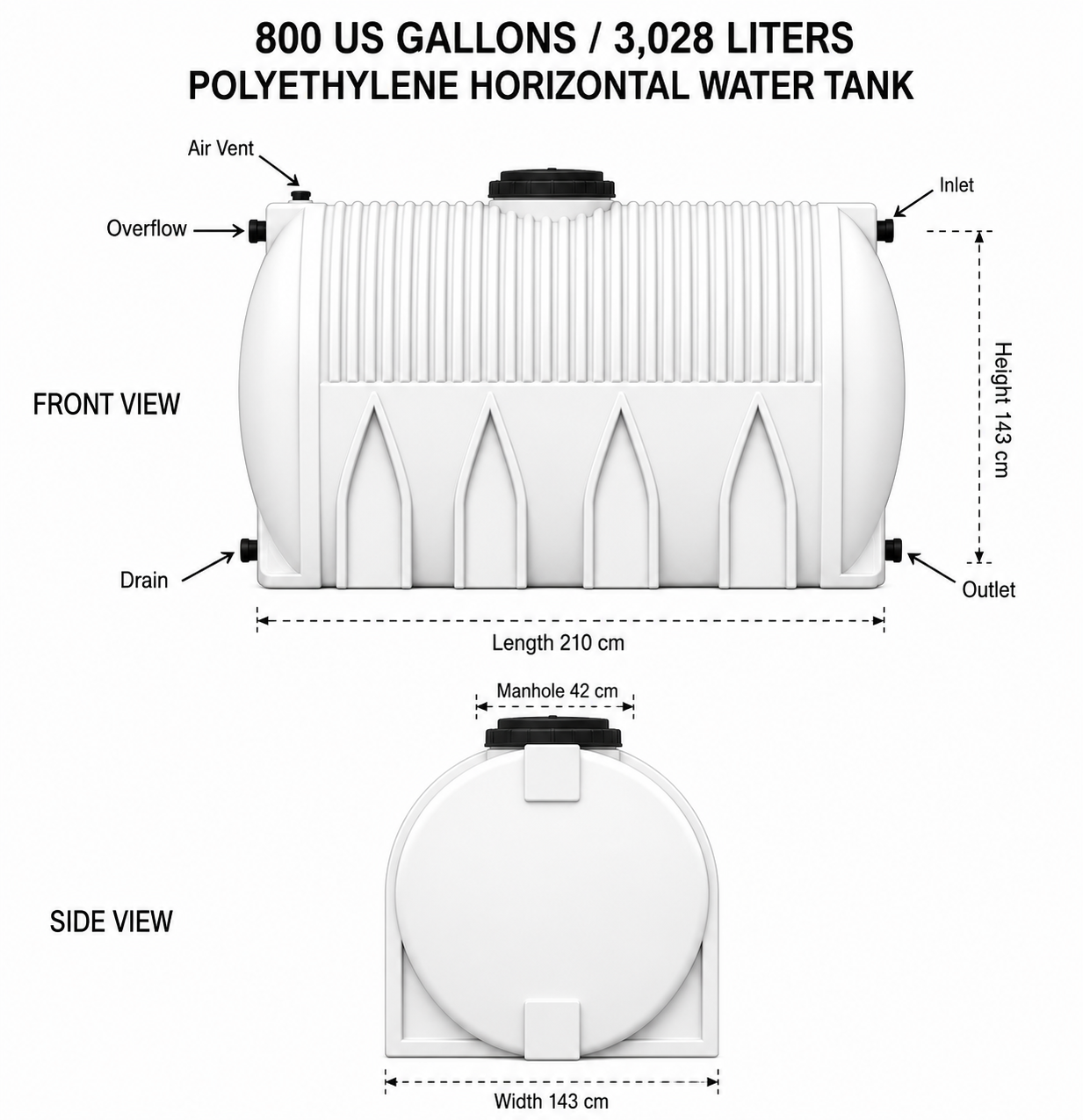

🔍 Click diagram to enlarge
Horizontal PVC / Plastic Water Tank
800 USG (3,028 L)
Horizontal Plastic Water Tank
Space-efficient horizontal polyethylene water tank made in UAE. UV-stabilised, food-grade material. Ideal for residential and commercial use.
5 Year Warranty · UAE Municipality Certified · ISO 9001:2015
Specifications
| Capacity | 800 USG / 3,028 L |
| Shape | Horizontal Cylindrical |
| Material | Virgin Polyethylene |
| UV Stabilizer | Yes |
| Layers | 3 Layer / 4 Layer / 5 Layer |
| Made In | UAE |
| Warranty | 5 Years |
| Certifications | ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018 |
| Municipality Approved | Yes – UAE Municipality Certified |
Product Features
UV-stabilised, food-grade polyethylene material
Rust-proof and corrosion-resistant
Lightweight and easy to install
Suitable for potable water storage
Long service life - 3 to 10 years
Compliant with UAE standards
5 Year Warranty
Delivered across all UAE emirates
Installation Guidelines
Place on a smooth, level concrete foundation
Maintain 10 cm clearance on all sides
Air vent (1–2 inch) provided on top
Use PVC tank connectors for piping connections
Isolate pump vibration if a pump is connected
Multiple tanks can be interconnected
Get a Quote Today
Contact us via WhatsApp or phone for pricing and delivery across UAE.
